Summary: DIGITNOW! Digital Conversion Turntable with Built-In USB Recording & Player
Features
-Plays and records MP3 files to a USB flash drive
-Converts LPs to MP3 files without the need of a computer
-Plays and converts 33 1/3, 45 and 78 RPM records
-USB output to transfer music directly to a computer
-Stereo RCA outputs to enjoy vinyl records through your home stereo speakers
-This product is class compliant; it does not require drivers

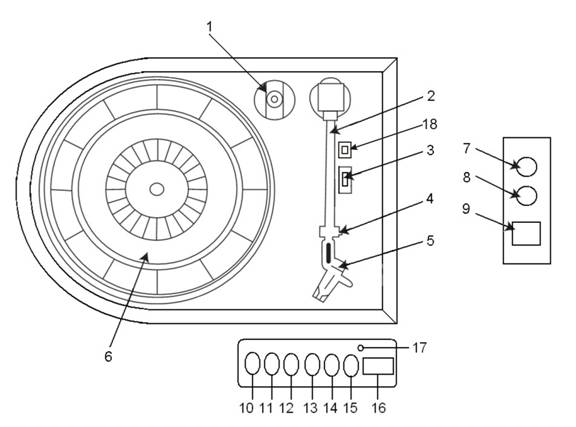

FUNCTIONS AND CONTROLS
1. 45 Single adaptor | 2. Tone arm |
3. Speed control switch | 4. Tone arm rest and security latch |
5. Cartridge/Stylus | 6. Turntable |
7. AUX-L OUT | 8. AUX-R OUT |
9. Power in & USB OUTPUT | 10. BACK / Volume up button |
11. FORWARD / Volume down button | 12. Play / Pause button |
13. Record button | 14. SOURCE button |
15. POWER button | 16. USB interface |
17. LED Light | 18.Auto Stop |
HOW TO PLAY YOUR RECORDS
-Press and hold the POWER button for about 3 seconds, LED light changes from red into green.
-Place the record on platter.
-Select speed (33/45/78RPM); use the included 45 RPM adapter if needed.
-Undo the arm clip.
-Use the Raise/Lower Lever to raise the tonearm, then move it over to the record.
-Lower the tonearm onto record; the record will begin playing.
-Adjust volume with VOL buttons or your speaker system.
-When finished, raise the tonearm and return it to rest on the arm clip.
HOW TO RECORD TO A FLASH DRIVE
- Connect a USB flash drive to the turntable’s front USB port, the turntable plays songs from U-disk immediately. Press SOURCE button, it shifts from U-disk to LP.playing
- To start recording, press REC button; the light will flash red, indicating it's recording.
- press again REC button to stop recording, the song recorded will be played immediately.
HOW TO PLAYBACK FROM A FLASH DRIVE
- Connect a USB flash drive with MP3 to the turntable’s front USB port.
- When the LED light is flashing and green, it is playing songs from U-disk. If it is LED light red, Press and hold the POWER button for about 3 seconds, LED light changes from red into will flash green.
- Press Play / Pause;FORWARD / BACK; VOL+/- Control the U-disk.
NOTE: Long pressing the VOL+ / VOL- means Volume+/-
Package contents:
-USB Turntable
-USB cable
-Instruction manual
